Floating Flow Meter Selection: Choosing Variable Area Gauges for Low-Viscosity Fluids
Quick Answer: For low-viscosity fluids under 10 cP, choose a variable area flow meter sized for the actual flow range, not the pipe diameter. Match the float and seal materials to the fluid temperature and chemical profile. Send Silver Instruments your pressure (bar), temperature (°C), pipe size (DN), and flow range to get a same day selection.
Low-Viscosity Fluids Change the Meter Choice
Water, light diesel, ethanol, methanol, and many solvents have viscosity below 10 cP. These fluids move through a variable area meter with less drag on the float. Because of that, a small float can jump or flutter if the flow range is too wide. A water treatment plant in Malaysia ordered a meter sized for 0 to 500 L/h but the actual flow was only 30 to 80 L/h. The float sat near the bottom and gave poor readings. In practice, most engineers skip this part: the flow range window on the scale should sit inside the meter measuring range, not at the ends.
Start with Flow Range and Pipe Size
Flow range matters more than pipe size for variable area meters. A DN25 pipe does not always need a DN25 meter. If the flow is 40 to 200 L/h of water, a DN15 meter often works better than a DN25 meter. The float gets enough lift to reach the mid scale. For a DN15 metal tube rotameter from Silver Instruments, a common water range is 5 to 50 L/h or 16 to 160 L/h. For DN25, a standard water range is 40 to 400 L/h or 100 to 1000 L/h. Tell the supplier the minimum and maximum flow, not just the line size. That small step avoids oversizing. Oversizing is the most common mistake we see in low-viscosity applications. So match the meter to the flow, not the flange.
Material Selection for Water, Diesel, and Solvents
The float and seal materials must match the fluid. Water at 20 to 60 °C works with 316L stainless steel floats and PTFE or Viton seals. Light diesel at 40 °C can use the same metals. Ethanol and methanol are cleaner but may need EPDM seals if the process has no hydrocarbons. For demineralized water or low-conductivity liquids, avoid float types that rely on conductivity. A plain 316L float with magnetic indication works. Here is the thing: temperature affects the seal life more than the metal. If the fluid runs above 80 °C, switch to PTFE seals and a metal tube meter with a 4 to 20 mA HART transmitter. For food and beverage, ask for 316L wetted parts and a surface finish below 0.8 µm Ra. Silver Instruments can supply a DN15 or DN20 meter with this finish for brewery or dairy water lines.
Output and Alarm Options
A basic variable area meter has a local scale and a needle valve. That is fine for simple water lines. But many customers in Southeast Asia and the Middle East need a signal for a PLC or remote display. For that, choose a metal tube variable area meter with a 4 to 20 mA HART transmitter. Add two limit switches if the loop controls a pump or valve. At a paint manufacturer in Vietnam, the operator needed a low flow alarm at 15 L/h for solvent. A Silver Instruments metal tube meter with two switches solved that. For hazardous areas, request ATEX Zone 1 certification. The transmitter can also send HART data for total flow and temperature if the meter has a PT100 sensor. Not every low-viscosity meter needs HART. But if the plant has a control system, the analog output pays for itself quickly.
Common Model Suggestions
For water flow from 5 to 50 L/h in DN15, choose a Silver Instruments VA15 metal tube rotameter with 316L float and 4 to 20 mA output. For water from 100 to 1000 L/h in DN25, choose the VA25 with HART and a PT100 temperature element. For ethanol or methanol from 10 to 100 L/h, a glass tube meter with a 316L float and EPDM seals works, but only if the line pressure stays below 4 bar. Fo

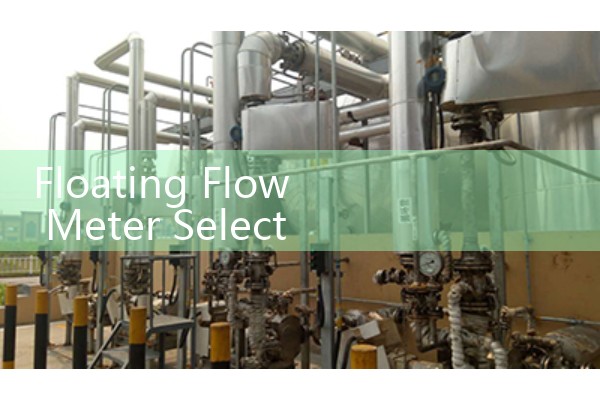

_600x400.jpg)
Installation Notes for Low-Viscosity Fluids
Install the variable area meter vertically with the flow upward. The float needs gravity to work against the fluid drag. If the pipe runs horizontal, add elbows to create a vertical section. Allow five pipe diameters of straight run before and after the meter. This is not always possible on compact skids. In that case, a metal tube meter with a flow conditioner can help. Avoid installing the meter after a partially open valve or a pump discharge with heavy pulsation. Pulsation causes the float to bounce and the output signal to jump. We have seen this on customer sites many times with small diaphragm pumps. Use a pulsation damper or move the meter to a stable header. For outdoor installations in the Middle East or Southeast Asia, protect the indicator from direct sun. The scale can fade and the electronics can drift if the housing temperature goes above 70 °C.
Variable Area Flow Meter Selection FAQ
What is the best variable area flow meter for water below 10 cP?
A metal tube rotameter with a 316L float works for most clean water lines from 20 to 60 °C. In DN15, the Silver Instruments VA15 covers 5 to 50 L/h or 16 to 160 L/h. In DN25, the VA25 covers 40 to 400 L/h or 100 to 1000 L/h. Choose 4 to 20 mA HART if the signal goes to a PLC.
Can I use a variable area flow meter for diesel fuel?
Yes. Diesel viscosity is around 3 to 5 cP at 40 °C. Use a metal tube meter with 316L wetted parts and Viton or PTFE seals. Specify the minimum and maximum flow in L/h. For a generator day tank, a DN15 meter with a range of 10 to 100 L/h is often enough. Silver Instruments supplies these meters with local indication or a 4 to 20 mA signal.
How do I size a variable area flow meter for a low-viscosity fluid?
Send the supplier the fluid name, minimum flow, maximum flow, operating pressure, operating temperature, and pipe diameter. Select the meter so the normal flow sits between 20 percent and 80 percent of the scale. This keeps the float in the stable measuring zone. Do not size the meter by line diameter alone. That is the fastest way to oversize the meter and lose accuracy at low flow.
What is the difference between a glass tube and a metal tube variable area flow meter?
A glass tube meter gives a direct visual reading and costs less. It works for clean low-viscosity fluids at low pressure, usually below 4 to 6 bar. A metal tube meter handles higher pressure, high temperature, and hazardous areas. It also supports 4 to 20 mA HART and limit switches. For industrial water, solvent, or diesel lines that need a control signal, choose the metal tube type.
Can a variable area flow meter work with a PLC or remote display?
Yes. Specify a 4 to 20 mA HART transmitter and a 24 VDC loop power supply. The meter sends the float position as an analog signal. You can scale the output in the PLC in L/h or m3/h. Silver Instruments can also supply two limit switches for low flow and high flow alarms. For ATEX Zone 1 sites, ask for the certified model.
Get a Selection for Your Low-Viscosity Fluid
Send your fluid name, viscosity in cP if known, flow range in L/h or kg/h, pressure in bar, temperature in °C, and pipe size in DN. Silver Automation Instruments will reply with a recommended meter size, materials, and a price quotation. Contact us by Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. For water, diesel, ethanol, and light solvents, specify the normal flow and the maximum flow. That is enough to start the selection. Our website is flow-meter.com.au.
