Diesel Tank Flow Meter Sourcing for Fleet Storage Tank Dispensing Dials
Quick Answer: For diesel storage tank dispensing, an oval gear flow meter or a turbine flow meter with a local batch dial gives the most reliable field reading. Choose a DN20 or DN25 meter for typical fleet pumps, with pulse output or 4-20 mA HART if you need remote tracking. Send pipe size, flow range, pump pressure, and power supply to Silver Instruments for a quote.
Fleet diesel storage tanks are not all the same. A 5,000 L tank at a bus depot in Thailand works differently from a 20,000 L skid tank at a mine in Peru. Sourcing a diesel tank flow meter for a fleet storage tank dispensing dial becomes easier when you confirm the meter location and output first. The meter has to match the pump, the hose reel, and the way operators record fuel. Most engineers skip this part and then find air bubbles or low flow accuracy problems on site.
Matching the Meter to Fleet Diesel Tanks
Diesel viscosity at 40 °C is typically 2.0 to 4.5 cSt. That range is friendly for positive displacement oval gear meters. A DN25 oval gear meter with a 6 digit non resettable total dial and a 4 digit resettable batch dial covers most fleet fueling lanes. Typical flow range is 1 to 10 cubic meters per hour. Accuracy of ±0.2 percent is common on clean diesel. For larger depots, a DN40 meter handles 2 to 20 cubic meters per hour without a large pressure drop.
Turbine meters also work. They cost less in DN50 and above. But they need a straight run and do not like air pockets. Oval gear meters are more forgiving at low flow. Because diesel pumps often start and stop, positive displacement gives a better repeat reading for partial fills.
Dispensing Dials and Output Options
Here is the thing. Mechanical dials still win on many sites. A local mechanical register with a resettable batch dial and a non resettable totalizer is the quickest way for a driver to see liters dispensed. No power supply is needed for the mechanical dial. If the fleet uses fuel management software, add a Hall effect pulse output or a 4-20 mA HART transmitter. Silver Automation Instruments supplies both local only and local plus transmitter versions.
The pulse output can feed a PLC, a fuel management terminal, or a small remote display. In practice, many workshops ask for two outputs. The first is pulse for a fuel management system. The second is 4-20 mA for tank level or pump control display. This avoids adding a second meter in the pipe run.

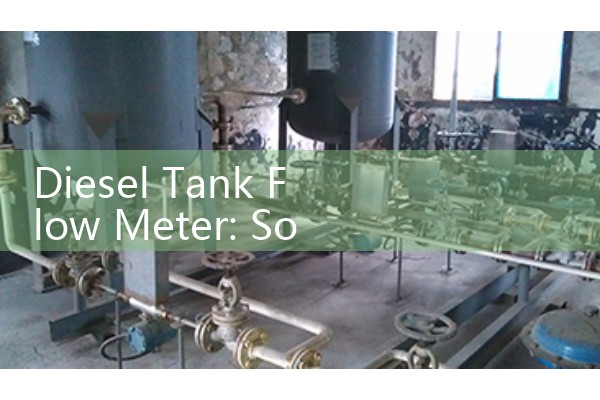

Installation Details for Storage Tank Skids
Most fleet diesel tanks sit outside. The meter body can be aluminium, cast iron, or stainless steel. For diesel, aluminium is enough in most cases. For coastal sites, stainless steel or painted cast iron works better. Use a mesh strainer before the meter if the tank has rust or debris. Add an air eliminator when the pump suction line can
_600x400.jpg)
Last year a customer in Vietnam asked us to replace a turbine meter that over counted by 4 percent because air was sucked in at low tank level. We supplied a DN25 oval gear meter with an air eliminator and a local batch dial. The fleet now records each 800 L vehicle fill within ±0.5 percent.
Pressure rating of PN16 is normal for diesel transfer pumps. Temperature from -10 to 60 °C covers most regions. If the site is in the Middle East, use a high temperature seal option because the skid surface can exceed 70 °C in summer. For hazardous areas, request ATEX Zone 1 approval. The pulse pickup or transmitter can be ordered as intrinsically safe.
What to Send for a Quote
Send us the pipe size in DN, diesel flow range in liters per minute or cubic meters per hour, pump pressure in bar, and power supply voltage. A typical quote request from a fleet manager looks like this. We need a diesel tank flow meter for a DN25 pipe, 20 to 120 L/min, pump pressure 6 bar, 24 VDC pulse output, and a local batch dial. That is enough for us to recommend a model and price.
Contact Silver Instruments at Tel: +86-25-68650347, WhatsApp: +86-25-52155837, or WeChat: +86 15365082610. You can also check the flow meter selection on flow-meter.com.au.
FAQ
Which flow meter is best for diesel storage tank dispensing? An oval gear flow meter is the best choice for most fleet diesel tanks below DN50. It handles start stop flow well and gives a local mechanical batch dial without power. For DN50 and above with high flow, a turbine meter is a lower cost option.
Can I use a flow meter with a mechanical dial for diesel? Yes. A mechanical register with a resettable batch dial and totalizer works without power. It is common on fleet skids where drivers need a direct liter reading at the hose reel.
Do I need an air eliminator for diesel dispensing? If the pump can pull air or the tank level is low, yes. Air causes over registration on turbine meters and unstable reading on oval gear meters. Install an air eliminator before the meter.
What output signals should I choose for a fleet fuel management system? Choose a pulse output if the system counts pulses. Choose 4-20 mA HART if the control room needs an analog signal and remote diagnostics. Some systems use RS485 Modbus. We factory fit the selected output to the same meter body.
Can Silver Instruments supply ATEX approved diesel flow meters? Yes. We supply ATEX Zone 1 versions for both oval gear and turbine diesel flow meters. Send the hazardous area classification and gas group when you request a quote.
Send your pipe size, diesel flow range, pump pressure, and power supply. Silver Automation Instruments will reply with a model and price for your fleet storage tank dispensing dial.
