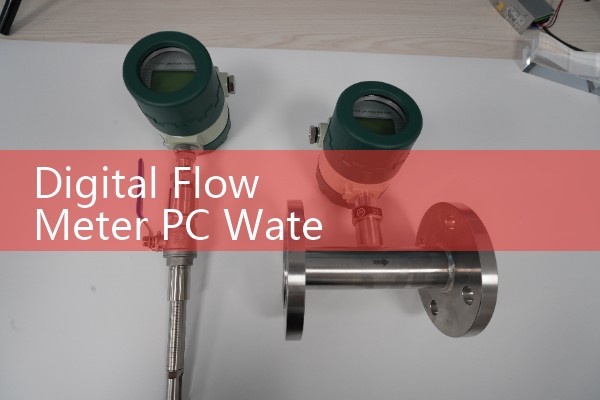

Digital Flow Meter for PC Water Cooling: Custom Rig Fluid Temperature Monitors
Quick Answer: For custom PC water cooling loops, a digital flow meter measures coolant flow in L/min and an inline PT100 sensor tracks fluid temperature. Silver Automation Instruments supplies compact meters from DN4 to DN25 with pulse, 4-20 mA, or RS485 outputs. Send us your flow range, fitting size, coolant type, and power supply for a matched price and model.
Most water cooling rigs rely on pump speed and fan curves. But pump speed alone does not tell you if coolant is actually moving through the block. A digital flow meter confirms real flow. In practice, a drop from 8 L/min to 3 L/min with the same PWM signal can point to a clogged jet plate, trapped air, or a failing pump.
Silver Automation Instruments builds industrial flow meters for oil and gas, water treatment, chemical, and food plants. The same compact inline meters work on PC water cooling test benches, server cooling loops, and laboratory chillers. We have supplied small turbine flow meters and thermal mass flow meters to system integrators in Vietnam, Australia, and the Philippines.
Why Add a Digital Flow Meter to a Custom Cooling Loop
A digital flow meter gives you an actual number on a local display or a signal to your controller. This matters when you tune a loop. For example, a D5 pump at 100 percent on a CPU and GPU loop often delivers 7 to 12 L/min depending on restriction. If the displayed value drops below 4 L/min on the same setting, you know something changed.
Temperature monitoring works together with flow. Low flow can cause a 5 to 10 degree Celsius rise on the component side even when the radiator exit temperature looks stable. An inline fluid temperature monitor shows the coolant temperature before and after the heat load. The difference tells you how well the loop removes heat.
Flow Range and Pipe Size for PC Cooling Rigs
Most custom loops operate between 0.5 and 15 L/min. Small form factor builds may run 0.2 to 4 L/min. Large external radiators with multiple pumps can push 20 L/min or more. For this range we recommend a flow meter body from DN4 to DN15. DN6 covers 0.3 to 10 L/min which fits a typical D5 or DDC pump curve.
Common fittings are G1/4 BSPP threads on the flow meter body. We also supply NPT 1/4 and G3/8 adapters. Confirm the thread standard before ordering. A G1/4 meter will not seal correctly on an NPT 1/4 port. We have seen this mismatch on several customer rigs.
Flow Meter Types Silver Instruments Recommends
For clean coolants, a small turbine wheel digital flow meter is the most practical option. It has a local display, pulse output, and low pressure drop. We offer models with POM, brass, or 316 stainless steel bodies. The POM body is light and safe for deionized water. Brass works for glycol mixtures. Stainless steel suits test benches that run multiple coolant types.
For deionized water with conductivity below 5 µS/cm, choose POM or 316 stainless steel. Brass may release ions over long test runs. For very low flow or viscous coolants, a thermal mass flow meter works better. It has no moving parts. This matters in loops that run below 0.2 L/min or use a coolant with viscosity above 10 cP. Most PC coolants sit around 1 cP at 20 degrees Celsius, so a turbine meter is enough. But if you test oil based coolants, specify a thermal meter.
Fluid Temperature Monitoring with PT100
Some digital flow meters include a built in PT100 temperature sensor. The display alternates between flow rate in L/min and temperature in degrees Celsius. Accuracy for the temperature channel is typically plus or minus 0.3 degrees Celsius. For tighter control, use a separate inline PT100 probe with a 4-20 mA transmitter.
An inline temperature sen
Outputs for Controllers and Loggers
Choose the output based on your control board. Pulse output is common for PC fan controllers and microcontrollers. A typical turbine meter sends a pulse per revolution. The frequency scales with flow. For a DN6 meter, 1 L/min may produce around 150 to 250 pulses per minute depending on the K factor. We calibrate each meter and print the K factor on the label.
4-20 mA output suits PLC systems, data loggers, and industrial computers. RS485 Modbus gives you both flow and temperature data on one bus. This is useful for server rooms and test benches where multiple loops run at the same time. If your test bench sits in a hazardous area, request 4-20 mA HART and ATEX Zone 1 housing. This configuration costs more but works with existing DCS and safety systems.
Installation Notes for Coolant Loops
Install the flow meter in a straight section after the pump. Avoid mounting it directly after a 90 degree elbow. A short straight run of 10 pipe diameters upstream and 5 downstream improves accuracy. For a DN6 meter that means about 60 mm upstream. In practice, most PC loops can meet this with a small adjustment to tube routing. Most engineers skip the straight run requirement, then wonder why the reading jumps.
Remove air before reading the meter. Trapped bubbles make a turbine flow meter read high. Run the pump at full speed for a few minutes and tilt the case to bleed air. One customer in Australia saw a reading of 12 L/min on a loop that was actually running 8 L/min. The cause was air trapped in the meter body.
How to Request a Quote for a PC Water Cooling Flow Meter
Tell us your flow range in L/min, pipe size or fitting type, coolant type, power supply, and output signal. Also note the fluid temperature range. We can match a digital flow meter from DN4 to DN25 with a PT100 sensor and local display.
Call Silver Automation Instruments at Tel: +86-25-68650347 or WhatsApp: +86-25-52155837. WeChat: +86 15365082610. A real engineer checks the sizing before we quote. Send your details and we return a model number, price, and lead time.
FAQ: Digital Flow Meter PC Water Cooling
What flow range do I need for a PC water cooling loop?
Most custom loops run 0.5 to 15 L/min. A DN6 flow meter covers 0.3 to 10 L/min and fits a typical D5 or DDC pump curve. For large external radiators, specify DN10 or DN15 with a range up to 30 L/min.
Can the flow meter measure coolant temperature at the same time?
Yes. Some compact digital flow meters include a PT100 sensor and alternate the display between flow rate and temperature. You can also order a separate inline PT100 probe with 4-20 mA output.
Which output signal works best for a PC cooling controller?
Pulse output works for most fan and pump control boards. 4-20 mA works for PLC and data loggers. RS485 Modbus gives you both flow and temperature over one bus. We configure the output before shipping.
What materials are safe for deionized water or glycol coolant?
POM and 316 stainless steel bodies are safe for deionized water. Brass works for glycol based coolants. Check the O ring material as well. EPDM or FKM works with most PC coolants.
How do I order a flow meter for a custom water cooling rig?
Send us your flow range in L/min, fitting size such as G1/4 or NPT 1/4, coolant type, power supply, and required output. Call Tel: +86-25-68650347 or email the details. We reply with a model, price, and lead time.
